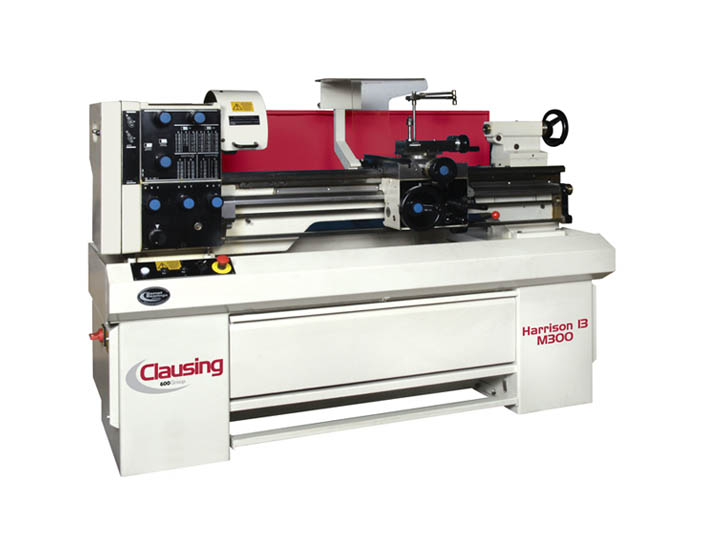

M300 Parts and Assemblies

Choose an assembly from the table of contents or the expandable headings below. Only one assembly remains open at a time, keeping the complete M300 parts catalog compact and easy to use.

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

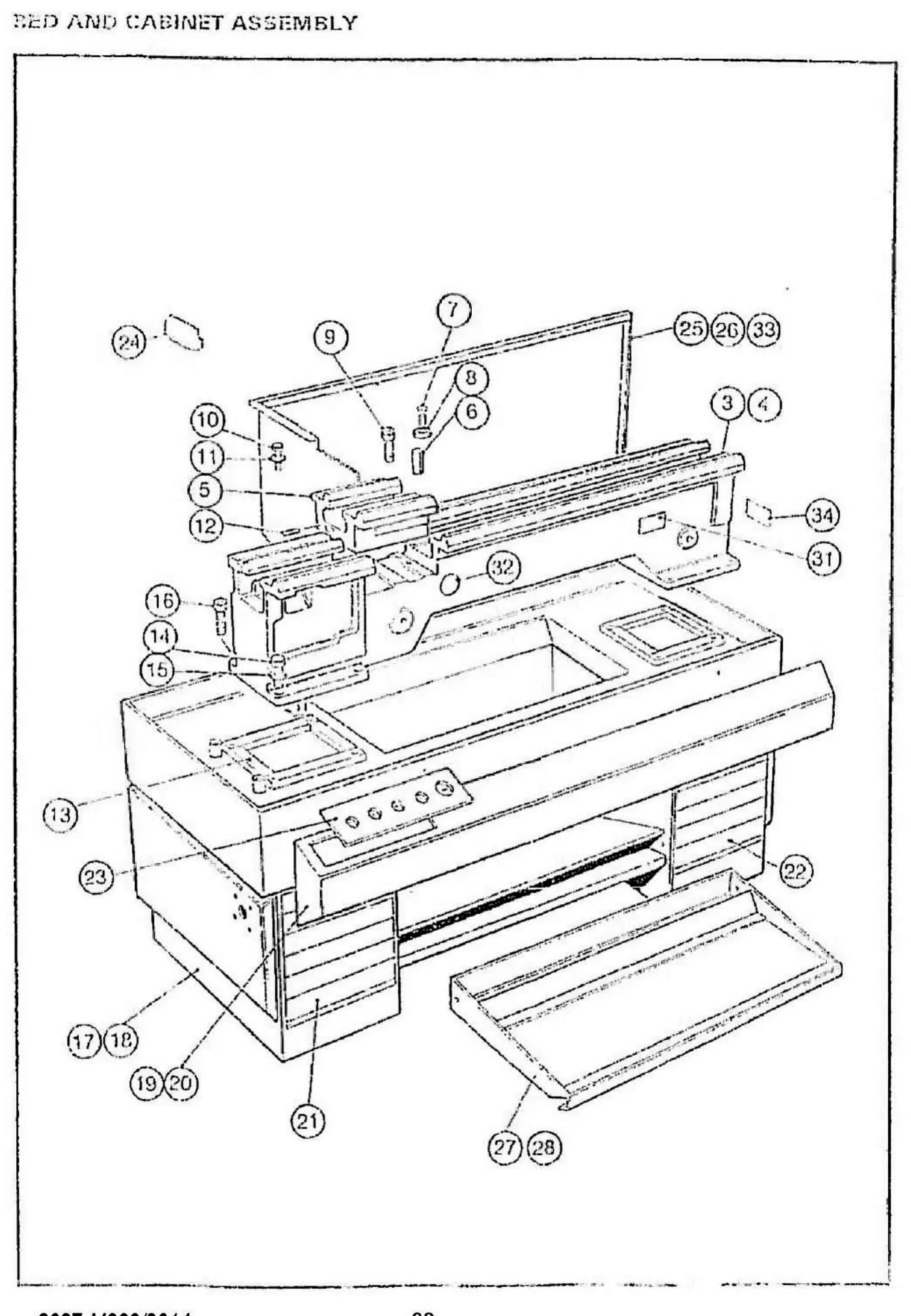

Harrison M300 bed and cabinet exploded parts diagram
Harrison M300 Bed and Cabinet Assembly - exploded diagram, manual page 32.
No matching M300 parts were found. Try a shorter part number or a different description.
ItemPart NumberDescriptionQty.
3D045-0176JBed, gap, 25 in. long1
4D045-0175JBed, gap, 40 in. long1
5D850H8001Gap pierce1
6FT-0960Pin, taper1
7FS-0462Screw, M8 x 16 countersunk socket1
8D001H2093Washer1
9FS-0188Screw, M10 x 35 cap head socket2
10FS-0636Screw, M10 x 25 hex head H/T1
11FP-0060Washer, M101
12FS-0520Screw, M8 x 20 cup point1
13D700H1010Strip, bed support4
14FS-0608Screw, M12 x 45 hex head H/T6
15FP-0070Washer, M126
16FS-0210Screw, M12 x 35 cap head2
17D042-0229Cabinet base, 25 in.1
18D042-0222Cabinet base, 40 in.1
19D346-1457Facia, 25 in.1
20D346-1421Facia, 40 in.1
21D537-1543Nameplate 'H' logo1
22D537-1546Nameplate M3001
23NA-1207Nameplate-controls1
24D301H037.1/VSwarf shield1
25D346-1459Splash guard, rear, 25 in.1
26D346-1458Splash guard, rear, 40 in.1
31NA-0866Induction hardened bedway plate1
32NA-4251ISO metric thread label1
33D410H033.1Bracket, splash guard2
34D537-1169Nameplate 'H' legend1

Reference: Harrison M300 Original Instructions and Spare Parts Manual, Bed and Cabinet Assembly, manual pages 32-33. Verify the machine serial number and part compatibility before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

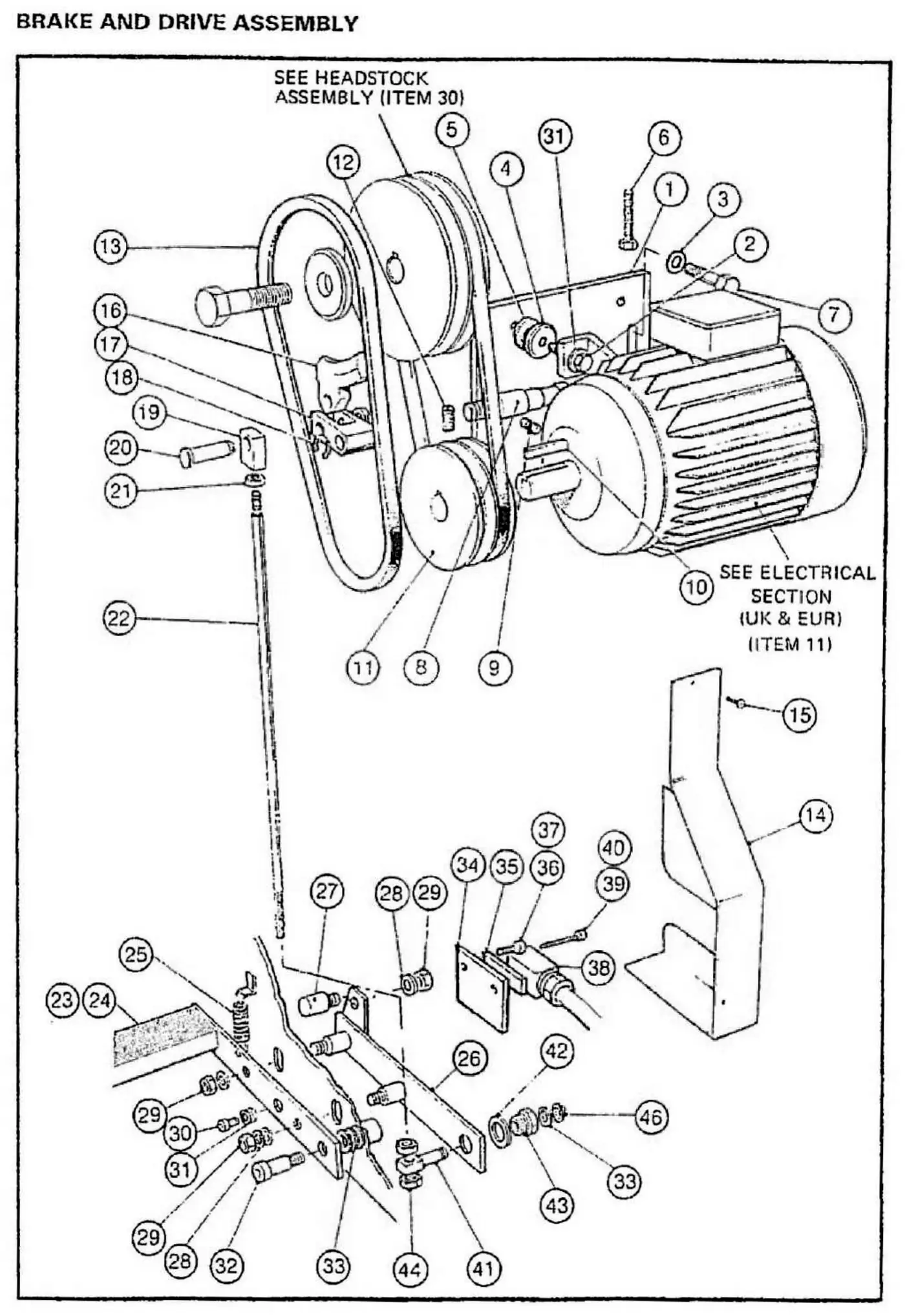

Harrison M300 brake and drive assembly exploded parts diagram
Harrison M300 Brake & Drive Assembly exploded diagram (manual pages 34 and 36).
ItemPart NumberDescriptionQty.
1D565-2799Bracket, motor mounting, UK, Europe, Canada1
2FS-0576Screw, M8 x 30 hex head4
2FS-0578Screw, M8 x 35 hex head (USA only)3
3FP-0060Washer, M104
4GC-0070Spacer, mounting4
5GE-0020Mounting, anti-vibration4
6FS-0874Screw, adjusting, M8 x 50 square head2
7FS-0636Screw, M10 x 25 hex head3
8D260H1007Shaft, motor mounting1
9FS-0366Screw, M8 x 12 dog point1
10KA-0072Key, motor shaft, UK, Europe, Canada1
10KA-0212Key, motor shaft, USA1
11D031H6008Pulley drive - UK & Europe1
11D031H6009Pulley drive - USA1
11D031H6010Pulley drive - Canada1
12FS-0502Screw, M6 x 121
13VA-0075Belt, drive2
14D301H109.1Cover, pulley motor1
15FS-0284Screw, M5 x 10 button head5
16YQ-0010Block, brake1
17D810H2001Bracket, brake1
18RA-0410Clip, Springfix2
19D800H1003Block, connecting rod1
20D130H1004Pin, pivot1
21FS-0920Nut, M81
22S2501C017Rod, connecting1
23S2501C003Pedal, footbrake, 1000 mm machine1
24S2501C004Pedal, footbrake, 635 mm machine1
25FR-0012Spring2
26S2501C032Bar, brake1
27S2501C035Stud1
28FP-0130Washer, M123
29FS-0924Nut, M123
30FS-0158Screw, M8 x 12 cap head2
31FP-0050Washer, M88
32FS-0010Screw, shoulder, M10 x 12 x 162
33FP-0070Washer, M12 bright steel7
34S2501C033Plate, switch mounting1
35S2501C034Plate, clamping1
36FS-0112Screw, M5 x 12 cap head socket2
37FP-0030Washer, M52
38E031-0013Switch, limit1
39FS-0102Screw, M4 x 30 cap head2
40FP-0170Washer, M42
41S2501C022Stud, connecting1
42FP-0100Washer, M201
43S2501C021Bush, bearing1
44FS-0922Nut, 10 mm2
45FS-0516Screw, M8 x 12 cup point1
46RA-0090Circlip, 12 mm external1

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

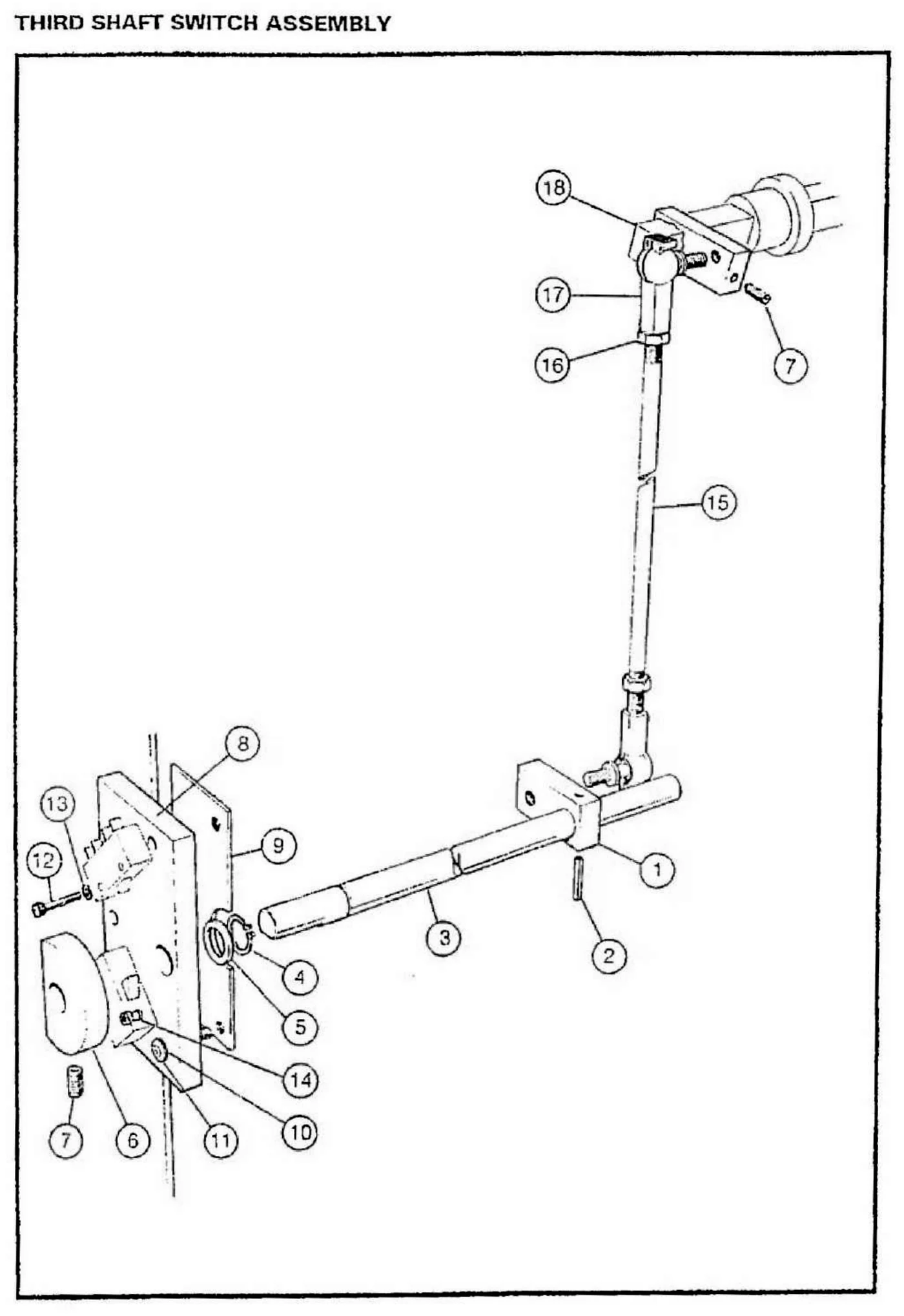

Harrison M300 third shaft switch assembly exploded parts diagram
Harrison M300 Third Shaft Switch Assembly exploded diagram (manual pages 38).
ItemPart NumberDescriptionQty.
1D800H2007Lever, camshaft1
2FT-0170Pin, Spirol M4 x 221
3D699-0968Camshaft1
4RA-0090Circlip1
5FP-0070Washer, M121
6D011H3014Cam1
7FS-0500Screw, M6 x 10 cup point socket2
8YQ-0020Block, mounting1
9D565-2717Clamp plate1
10FP-0130Washer, lock, M63
11FS-0298Screw, M6 x 25 button head socket3
12FS-0090Screw, M3 x 20 cap head4
13FP-0020Washer, M34
14YR-0010Insert, thread, M34
15D648-0145Connecting rod1
16FS-0918Nut, M62
17YN-0020M10 ball joint2
18D306H042.1Lever, 3rd shaft link1

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

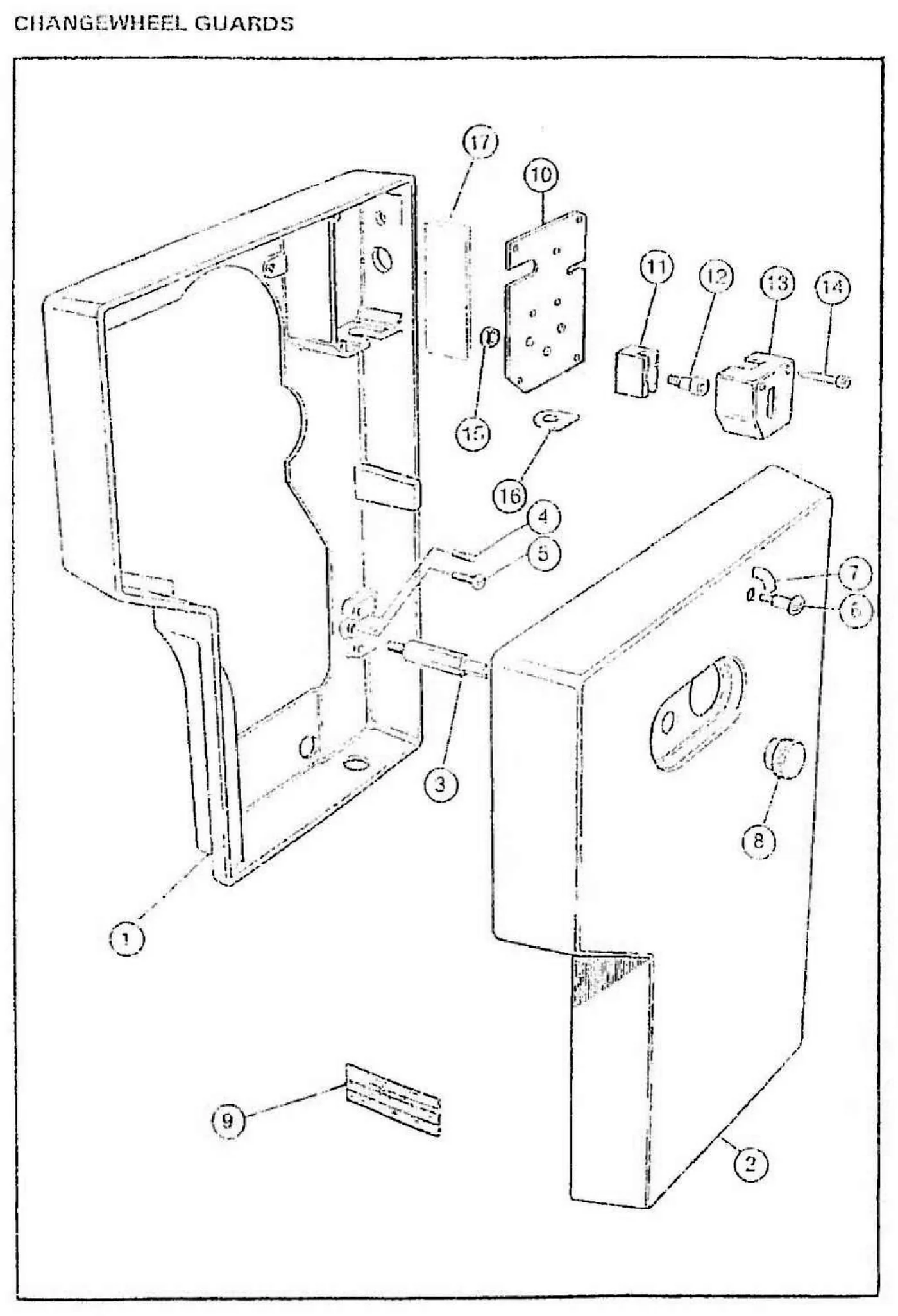

Harrison M300 changewheel guards exploded parts diagram
Harrison M300 Changewheel Guards exploded diagram (manual pages 40).
ItemPart NumberDescriptionQty.
1S2501C027Guard, inner1
2S2501C026Guard, outer1
3D502H1004Stud1
4FS-0786Screw, M6 x 16 dog point2
5FS-0788Screw, M6 x 20 button head dog point1
6S2501C019Key-interlock1
7NA-1229/SPlate-guard interlock switch1
8FS-0964Nut, M10, domed1
9NC-0050Chart, lubrication1
10S2501C025Plate, mounting, interlock switch1
11D901H015.4Block1
12FS-0011Screw, shoulder, M5 x 6 x 121
13D901H016.1Cam, interlock switch1
14FS-0122Screw, M5 x 35 cap head2
15FS-0916Nut, M5 brass locking2
16D631H3001Plate1
17D537-1299Changewheel plate - metric1
17D537-1300Changewheel plate - imperial1

The numbered callouts in the exploded diagrams correspond to the item numbers in the parts table below.

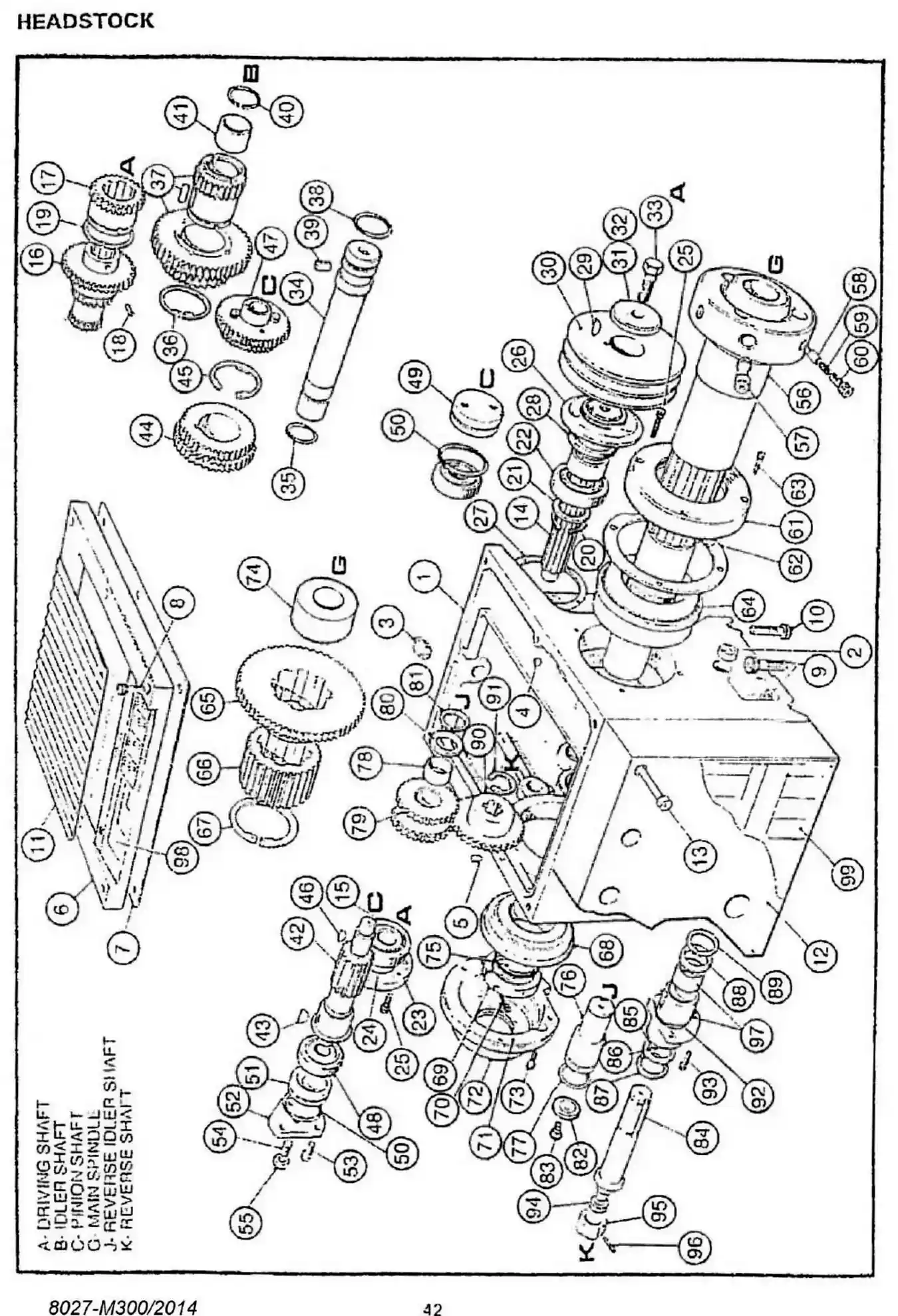

Harrison M300 headstock exploded parts diagram
Headstock exploded diagram - manual page 42.
ItemPart No.DescriptionQty.
1D384-0115JHEADSTOCK, CASTING1
2WA-0010WINDOW, OIL1
3PB-0030PLUG, DRAIN, MAGNETIC 3/4 in. BSP1
4D101H0002TUBE, OIL FEED1
5D101H0002TUBE, OIL FEED1
6S2502C002PCOVER, HEADSTOCK1
7GA-0470GASKET, HEADSTOCK COVER1
8FS-0138SCREW, M6 X 25 CAP HD SKT6
9FS-0210SCREW, M12 X 35 CAP HD SKT2
10FS-0212SCREW, M12 X 40 CAP HD SKT1
11GD-0020MAT, RUBBER1
12S2502C001PIECE, DISTANCE1
13FS-0179SCREW, M8 X 65 CAP HD SKT4
AM302-SHAFT ADRIVING SHAFT ASSEMBLY1
14D699-0986JSHAFT, DRIVE1
15BG-0020BEARING1
16A802H0102JGEAR ASSY1
17D344-1453JGEAR, 31 TEETH1
18FT-0290PIN, TENSION, M6 X 10 (HEAVY DUTY)1
19RA-0400CIRCLIP1
20RA-0150CIRCLIP1
21D001H2069WASHER, SPACING1
22BG-0030BEARING1
23D000H5001CAP, END1
24GA-0160GASKET1
25FS-0114SCREW, M5 X 16 CAP HD SKT6
26D011H5011CAP, END1
27GA-0100GASKET1
28OB-0020SEAL, OIL1
29KA-0200KEY, WOODRUFF1
30D031H6011PULLEY1
31D702H111.1WASHER, RETAINING1
32FO-0060WASHER, SAFETY2
33FS-0560SCREW, M6 X 20 HEX HD (BLACK)2
BM302-SHAFT BIDLER SHAFT ASSEMBLY1
34D232H2005SHAFT, IDLER1
35OA-0110'O' RING1
36RA-0170CIRCLIP1
37A802H0105JGEAR ASSEMBLY1
38OA-0120'O' RING1
39FS-0156SCREW, M8 X 12 CUP POINT1
40RA-0290CIRCLIP2
41BF-0150BEARING, GLACIER2
CM302-SHAFT CPINION SHAFT ASSEMBLY1
42D262H3002SHAFT, 2 in.1
43KA-0190KEY, WOODRUFF1
44A802H0104GEAR ASSEMBLY1
45RA-0350CIRCLIP1
46KA-0180KEY, WOODRUFF1
47A802H0103GEAR ASSEMBLY1
48BG-0020BEARING2
49D031H3006BUSH, BEARING, LOCATING1
50OA-0220'O' RING2
51D031H3005BUSH, BEARING, LOCATING1
52D002H5003CAP, END1
53FS-0114SCREW, M5 X 16 CAP HD SKT3
54FS-0518SCREW, M5 X 16 CUP POINT1
55FS-0920NUT, M8, BRIGHT1
GM302-SHAFT GMAIN SPINDLE ASSEMBLY1
56D709-0126JMAIN SPINDLE1
57D131H1001CAM3
58D101H0004PLUNGER, DETENT3
59FR-0115SPRING3
60FS-0160SCREW, M8 X 16 CAP HD SKT1
61D013H7004COVER, BEARING1
62GA-0110GASKET, BEARING COVER1
63FS-0120SCREW, M5 X 30 CAP HD SKT4
64BA-0040BEARING1
65D344-1458JGEAR, 81 TEETH1
66D344-1457JGEAR, 41 TEETH1
67RA-0040CIRCLIP1
68BA-0050BEARING1
69D001H5004LOCKNUT1
70FS-0118SCREW, M5 X 25 CAP HD1
71GA-0120GASKET1
72D302H101.1COVER, REAR BEARING1
73FS-0114SCREW, M5 X 16 CAP HD SKT4
74D302H103.1SPACER1
75D302H104.1SLEEVE, FINGER1
JM302-SHAFT JREVERSE IDLER SHAFT ASSEMBLY1
76D302H023.1/VSHAFT, REVERSE IDLER1
77OA-0150'O' RING1
78BF-0130BEARING, GLACIER2
79D341H5006GEAR, 33 TEETH1
80D001H2078SPACER1
81RA-0140CIRCLIP1
82D402H020.1WASHER1
83FS-0130SCREW, M6 X 10 CAP HD SKT1
KM302-SHAFT KREVERSE SHAFT ASSEMBLY1
84D260H2011SHAFT, REVERSE, IMPERIAL1
85FT-0050PIN, SPIROL, M3 X 101
86D001H2078SPACER1
87OB-0040SEAL, OIL1
88D001H2071SPACER1
89RA-0130CIRCLIP1
90D341H6012GEAR, REVERSE, 46 TEETH1
91RA-0340CIRCLIP1
92OA-0160'O' RING1
93FS-0114SCREW, M5 X 16 CAP HD SKT3
94D001H2072SPACER1
95D001H2098SLEEVE, SPLINED - IMPERIAL1
96FT-0670PIN, GROOVED, 5/32 in. X 3/4 in.1
97A802H0804SHAFT, BEARING ASSEMBLY1
98NA-1443SPEED PLATE, 40-2500 RPM1
99D537-1289THREAD & FEED PLATE1
100D557-0164SET OVER PAD1
101D560-0389SET OVER PIN2
102B111-5160SPIROL PIN 10 DIA X 402
103B164-0170M12 X 20 SET SCREW1
104FS-0190M10 X 40 CAP SCREW1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagrams correspond to the item numbers in the parts table below.

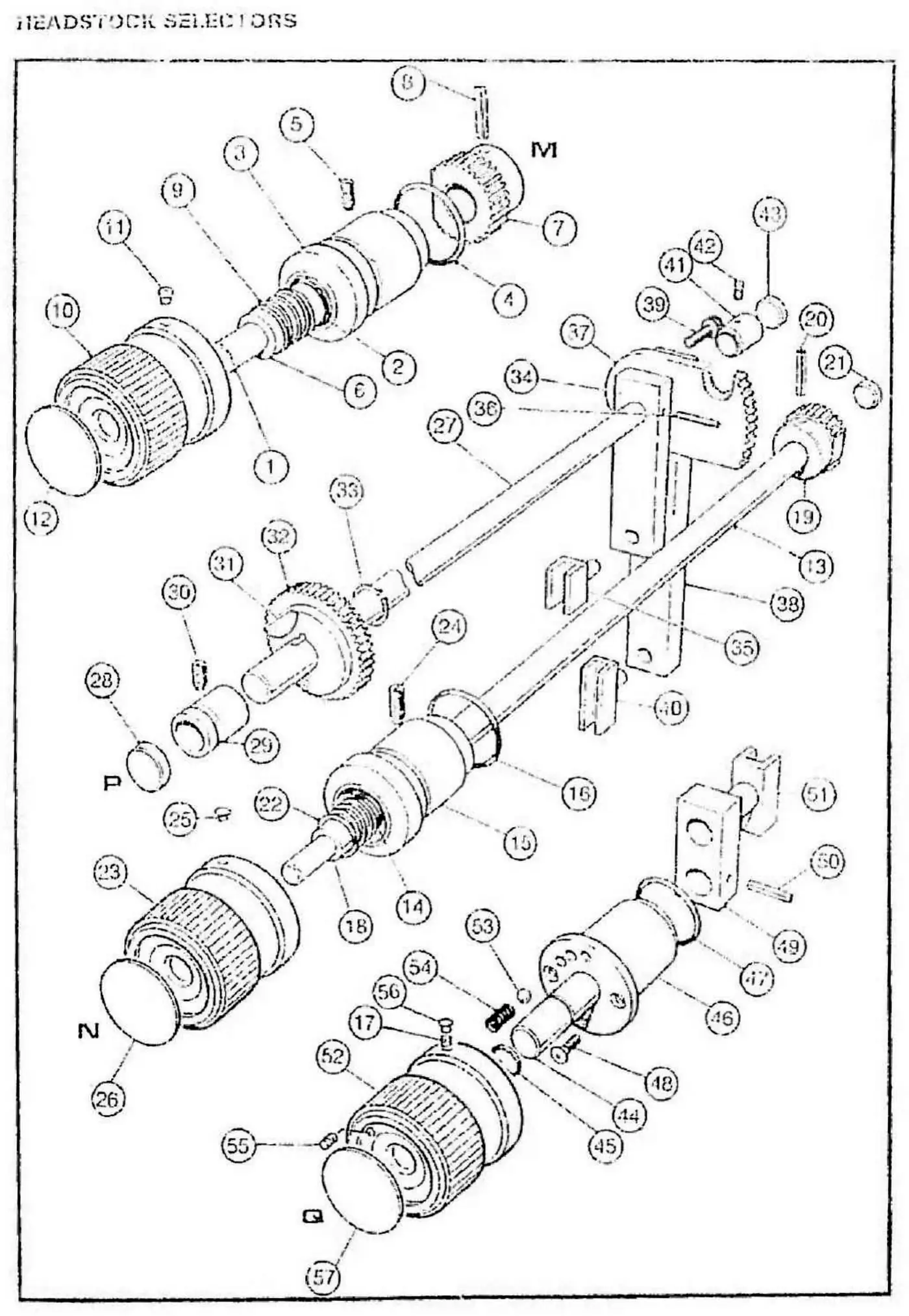

Harrison M300 headstock selector exploded parts diagram
Headstock Selector exploded diagram - manual page 50.
ItemPart No.DescriptionQty.
MM302-SHAFT-MSELECTOR SHAFT ASSEMBLY, LH1
1S2502C004ROD, SELECTOR, LH1
2OB-0050RING, SOFT1
3D131H3008BUSH, LH1
4OA-0170'O' RING1
5FS-0348SCREW, M6 X 10 DOG POINT SKT1
6BD-0020BEARING, NEEDLE ROLLER1
7D311H2018GEAR, SELECTOR 20 TEETH1
8FT-0180PIN, SPIROL 4 X 24 MM1
9FR-0002SPRING1
10S2502C008KNOB, SELECTOR1
11ED-0275PLUG, WHITE1
12ED-1425CAP, END1
NM302-SHAFT-NSELECTOR SHAFT ASSEMBLY, RH1
13S2502C003ROD, SELECTOR, RH1
14OB-0050RING, SOFT1
15D131H3007BUSH, RH1
16OA-0170'O' RING1
17FS-0348SCREW, M6 X 10 DOG POINT3
18BD-0020BEARING, NEEDLE ROLLER1
19D311H2018GEAR, SELECTOR 20 TEETH1
20FT-0180PIN, SPIROL 4 X 24 MM1
21D000H1002PLUG1
22FR-0002SPRING1
23S2502C008KNOB, SPEED SELECTOR1
24FS-0356SCREW, M6 X 16 DOG POINT1
25ED-0275PLUG, WHITE1
26ED-1425CAP, END1
PM302-SHAFT-PSELECTOR ROD ASSEMBLY1
27D230H1011ROD, SELECTOR1
28D000H2011PLUG, HEADSTOCK1
29BE-0150BEARING, OILITE1
30FS-0346SCREW, M6 X 8 HALF DOG POINT1
31KA-0170KEY, WOODRUFF1
32D311H4016GEAR, SELECTOR1
33RA-0100CIRCLIP1
34D700H2007LEVER, SHIFTER1
35D411H2017SHOE, SELECTOR1
36FT-0180PIN, SPIROL 4 X 24 MM1
37D436H6004QUADRANT, GEAR1
38D041H2001LEVER, SELECTOR1
39FS-0114SCREW, M5 X 16 CAP HD SKT1
40D411H2020SHOE, SELECTOR1
41D101H2112BEARING1
42FS-0130SCREW, M6 X 10 SKT1
43D000H2006PLUG1
QM302-SHAFT-QREVERSE LEVER ASSEMBLY1
44S2502C005ROD, REVERSE SELECTOR1
45OA-0010'O' RING1
46D131H3011BUSH, SELECTOR1
47OA-0090'O' RING1
48FS-0426SCREW, M4 X 10 COUNTERSUNK SKT2
49D800H1004LEVER, SELECTOR1
50FT-0150PIN, SPIROL M4 X 201
51D411H2018SHOE, SELECTOR1
52S2502C009KNOB, FEED SELECTOR1
53UB-0005BALL, STEEL 5 MM1
54FR-0009SPRING1
55FS-0500SCREW, M6 X 10 CUP POINT3
56ED-0275PLUG, WHITE1
57ED-1425CAP, END1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagrams correspond to the item numbers in the parts table below.

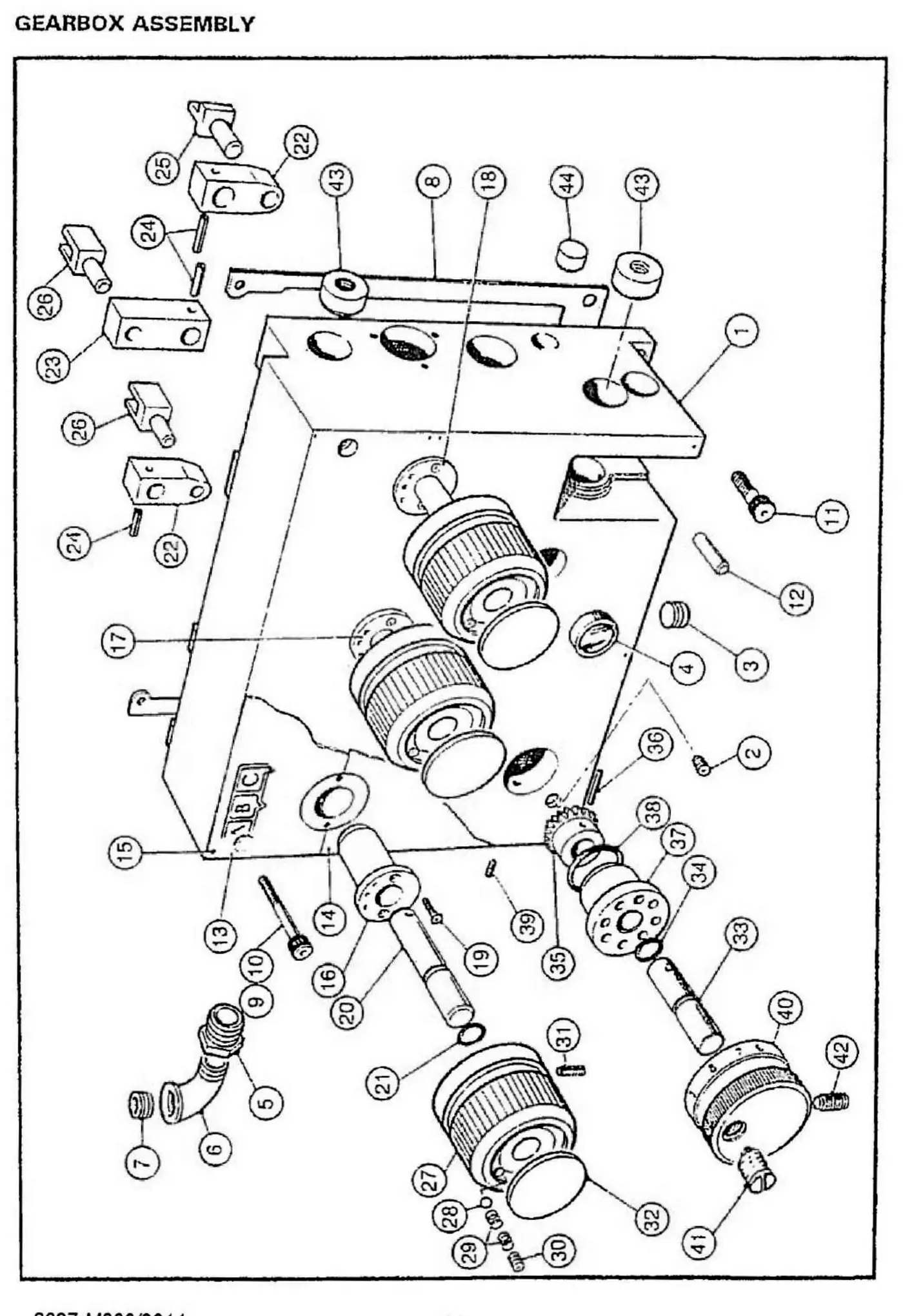

Harrison M300 gearbox assembly exploded parts diagram
Gearbox Assembly exploded diagram - manual page 54.
ItemPart No.DescriptionQty.
1D303H503.1PGEARBOX1
2PB-0085PLUG 1/4 in. BSP SKT PRESSURE1
3PB-0090PLUG 3/8 in. BSP SKT PRESSURE1
4WA-0010WINDOW, OIL1
5D303H002.1/VCONNECTOR, REDUCING1
6PB-0055ELBOW 1/4 in. BSPT 90 DEG M/F1
7PB-0110PLUG 1/4 in. BSPT SKT1
8GA-0150GASKET1
9FS-0180SCREW, M8 X 70 CAP HD1
10FS-0178SCREW, M8 X 60 CAP HD1
11FS-0164SCREW, M8 X 25 CAP HD3
12FT-0580PIN, GROOVED, M8 X 252
13NA-1314PLATE, TOP BOTTOM1
14NA-1315PLATE, BOTTOM1
15B123-6024SCREW, No. 4 3/8 in. PAN HD SELF TAP10
LM303-LEVERSSELECTOR LEVER ASSEMBLY1
16D111H2017BUSH, SELECTOR LH1
17D111H2018BUSH, SELECTOR CENTRE1
18D111H2016BUSH, SELECTOR RH1
19FS-0426SCREW, M4 X 10 CSK SKT HD6
20D230H0003SHAFT, SELECTOR3
21OA-0010'O' RING3
22D800H1002LEVER, SELECTOR2
23D800H1001LEVER, SELECTOR1
24FT-0150PIN, M4 X 20 SPIROL3
25D411H1003SHIFTER, GEAR1
26D411H1004SHIFTER, GEAR2
27S2502C009KNOB, FEED REVERSE3
28UB-0005BALL, STEEL 5 MM3
29FR-0009SPRING (2 SPRINGS EACH HOLE)6
30FS-0502SCREW, M6 X 12 CUP POINT3
31FS-0356SCREW, M6 X 16 DOG POINT3
32ED-1425CAP, END3
DM303-DIALSELECTOR DIAL ASSEMBLY1
33D230H1012SHAFT1
34OA-0030'O' RING1
35D371H2001GEAR, BEVEL1
36FT-0180PIN, SPIROL M4 X 241
37D131H3010BUSH1
38OA-0160'O' RING1
39FS-0348SCREW, M6 X 10 DOG POINT1
40D111H3017DIAL, SELECTOR1
41FS-0048DETENT, BALL SCREW, M101
42FS-0352SCREW, M6 X 12 DOG POINT1
43D102H2005PLUG - CASTING TOP2
44D100H2001PLUG - CASTING BOTTOM1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

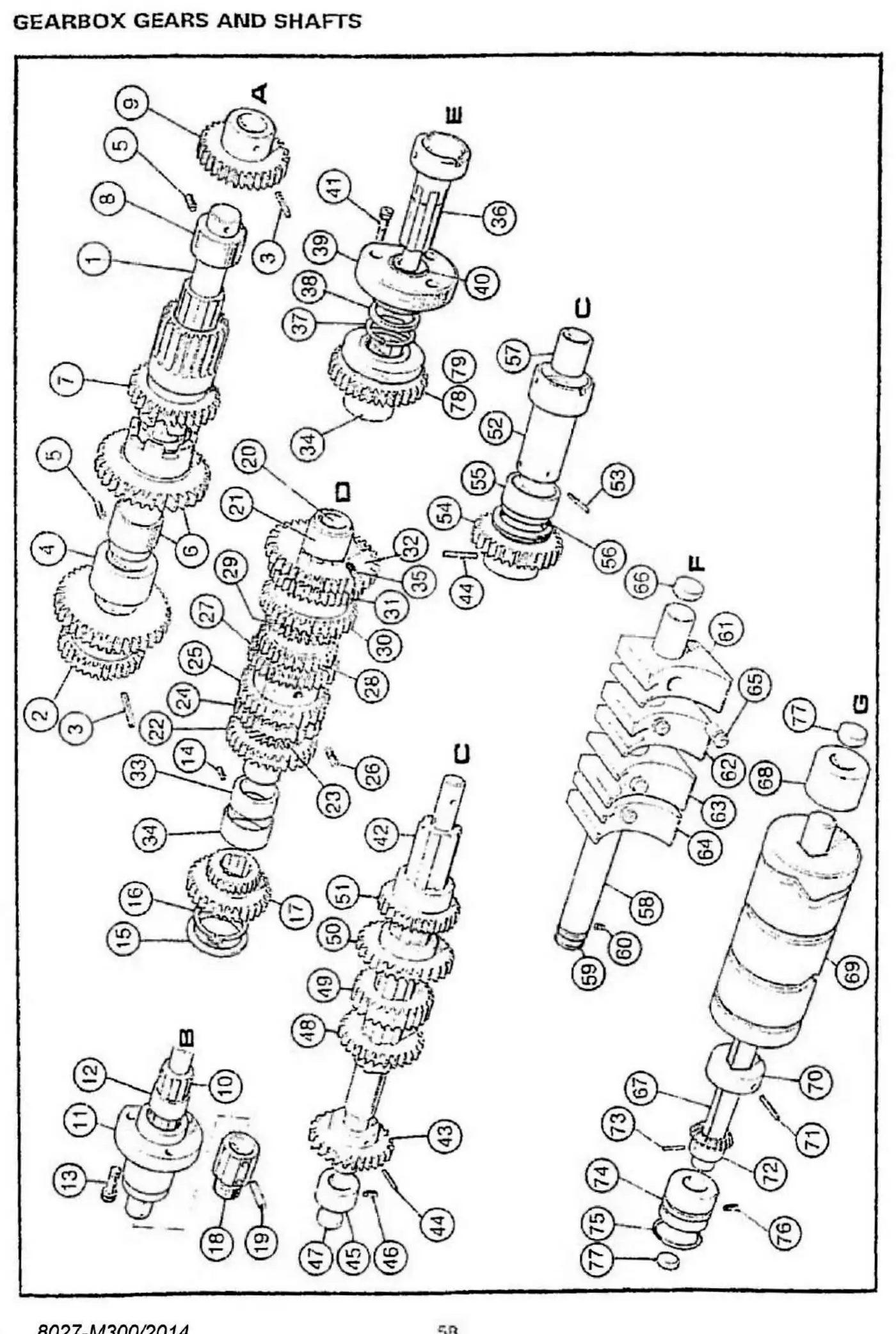

Harrison M300 gearbox gears and shafts exploded parts diagram
Gearbox Gears and Shafts exploded diagram is shown above. Its searchable parts table will be added in a future update.

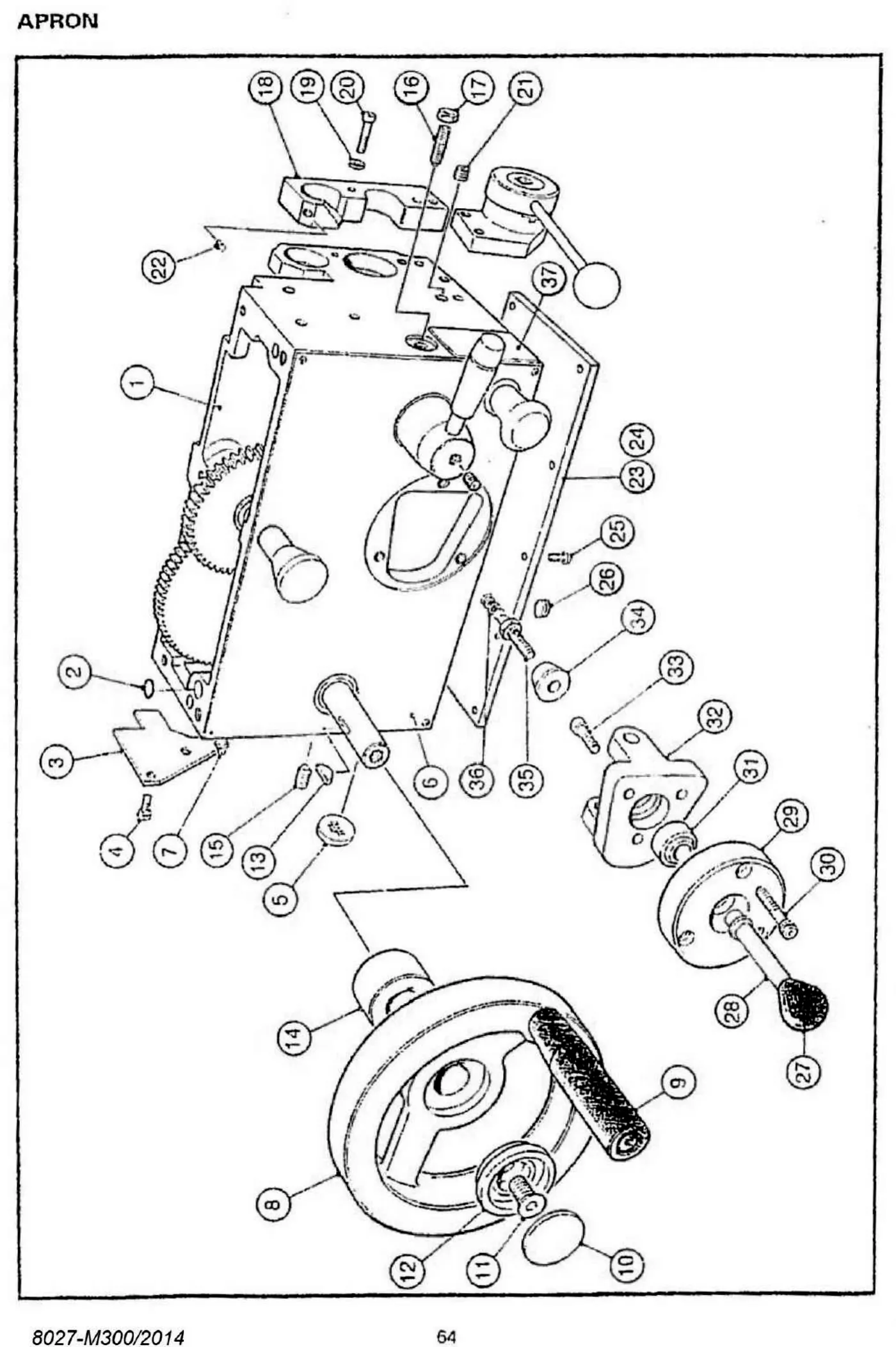

Harrison M300 apron exploded parts diagram
Apron exploded diagram is shown above. Its searchable parts table will be added in a future update.

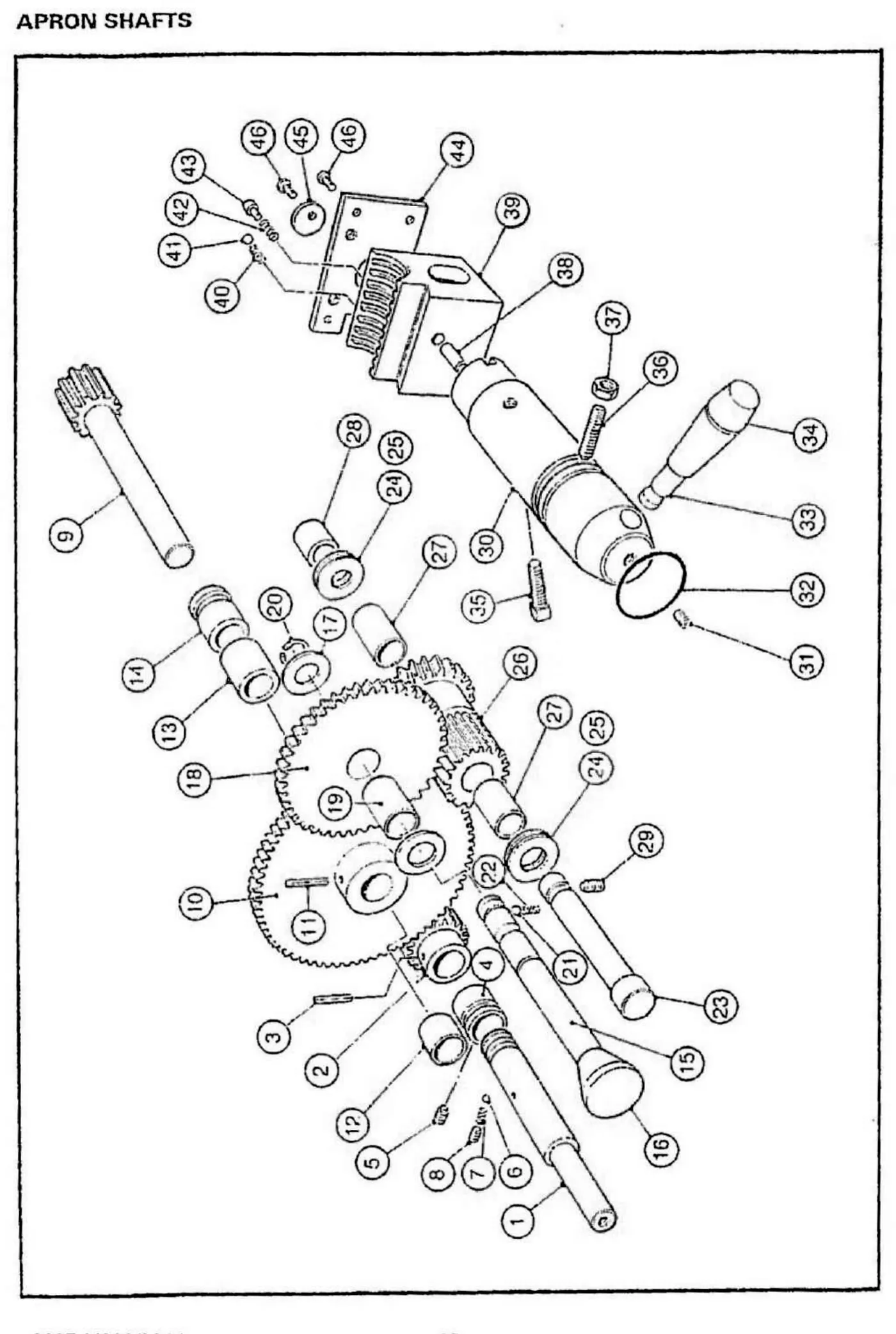

Harrison M300 apron shafts exploded parts diagram
Apron Shafts exploded diagram is shown above. Its searchable parts table will be added in a future update.

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

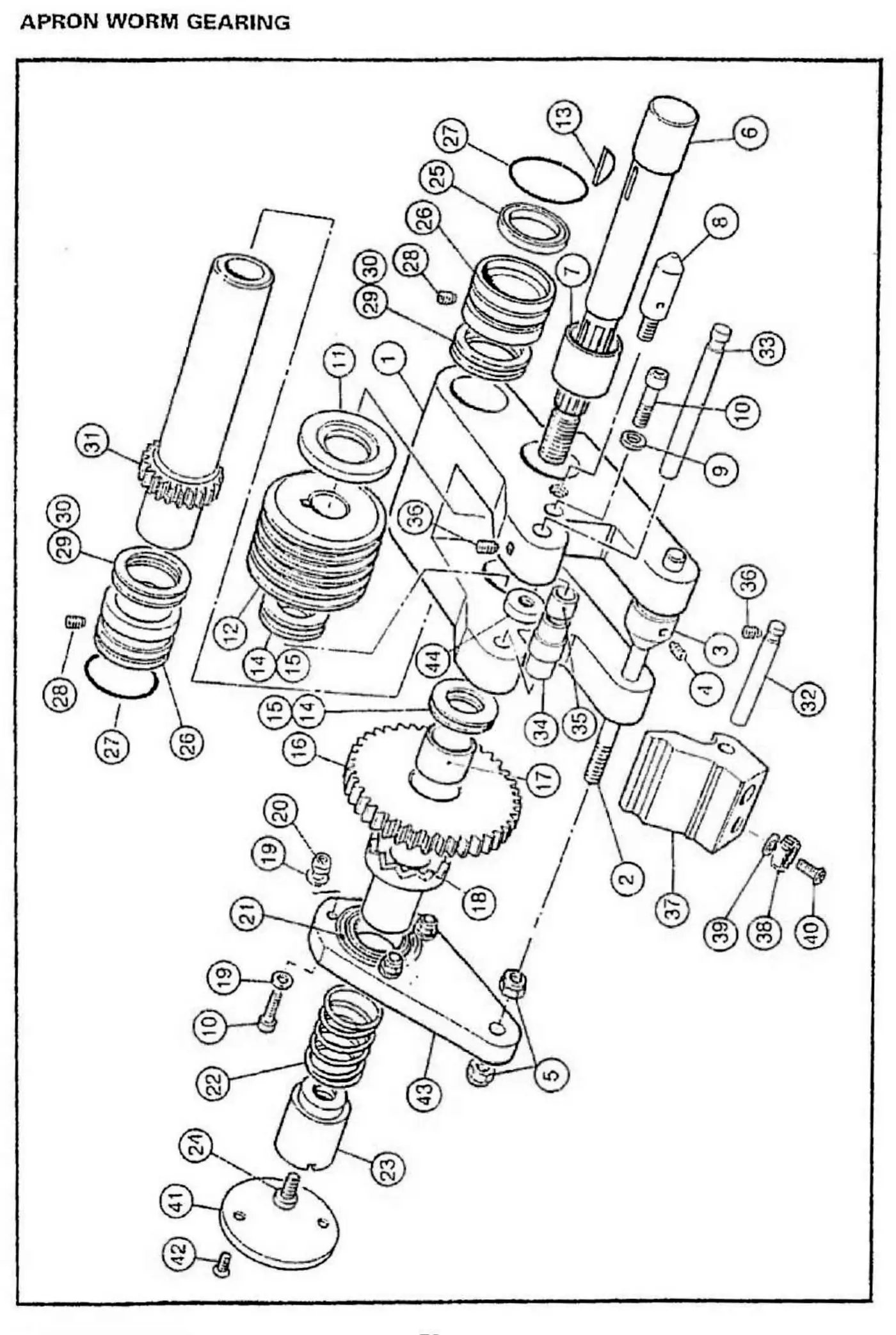

Harrison M300 apron worm gearing exploded parts diagram
Apron Worm Gearing exploded diagram - manual page 72.
ItemPart No.DescriptionQty.
1D304H008.1WORM BOX, LH1
1D304H042.1WORM BOX, RH1
2D704H016.1STUD1
3D304H032.1COLLAR1
4FS-0530SCREW, M5 X 5 CUP POINT1
5FS-0944LOCKNUT, M62
6D704H012.1SHAFT, WORM BOX1
7BF-0130BUSH1
8D304H023.1STUD, INTERLOCK1
9FP-0030WASHER, M51
10FS-0116SCREW, M5 X 20 CAP HD4
11D704H044.1SPACER1
12D304H014.1GEAR, HELICAL1
13KA-0180KEY, WOODRUFF1
14BC-0080RACE, THRUST2
15BC-0090WASHER, THRUST4
16D704H010.1GEAR, CLUTCH, 39T1
17BF-0095LONG BUSH, 15 MM X 17 MM X 12 MM1
18D704H011.1CLUTCH1
19FP-0025WASHER, M56
20FS-0974NUT, LOCK3
21BG-0280BEARING, BALL1
22FR-0320SPRING1
23D304H015.1NUT1
24FS-0704SCREW, M5 X 10 PAN HD S/STEEL1
25OB-0010SEAL, OIL2
26D031H3007BEARING, END2
27OA-0210'O' RING2
28FS-0346SCREW, M6 X 8 DOG POINT2
29BC-0070RACE, THRUST2
30BC-0060WASHER, THRUST4
31D304H013.1GEAR, FEEDSHAFT1
32D304H035.1PIN, CLIP HINGE1
33D704H008.1PIN, LOCATING BUSH1
34D904H025.1CLIP, LOCATING BUSH1
35D704H047.1SPACER1
36FS-0490SCREW, M5 X 6 CUP POINT2
37D304H043.1CLIP, WORM BOX, LH1
37D304H044.1CLIP, WORM BOX, RH1
38BG-0290BALL BEARING1
39FP-0030WASHER, M5 BRIGHT1
40FS-0286SCREW, M5 X 12 BUTTON HD4
41D304H025.1DISC, ACCESS1
42FS-0424SCREW, M4 X 8 C/SUNK SOCKET2
43D704H004.1PLATE, TRIP1
44D704H045.1WASHER, TRIP1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

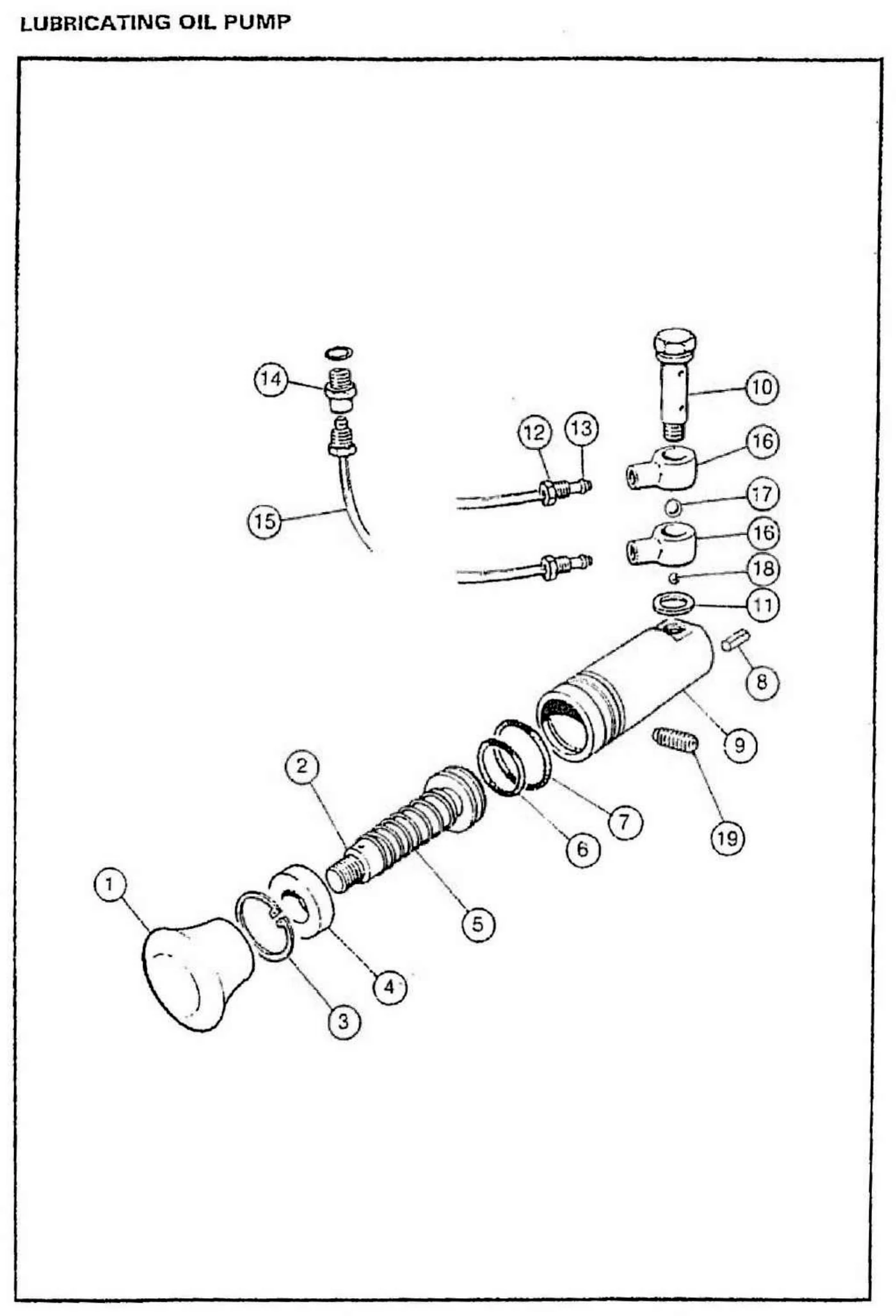

Harrison M300 lubricating oil pump exploded parts diagram
Lubricating Oil Pump exploded diagram - manual page 76.
ItemPart No.DescriptionQty.
1HA-0040KNOB, BLACK1
2D230H1015PISTON1
3RA-0270CIRCLIP, INTERNAL1
4D001H1010CAP, END1
5FR-0003SPRING1
6OA-0070'O' RING (SMALL)1
7OA-0120'O' RING (LARGE)1
8D404H039.1PIN1
9D231H2001BODY, PUMP1
10D304H039.1BOLT, BANJO2
11PA-0200WASHER, SEALING5
12PA-0230NUT, TUBING4
13PA-0220SLEEVE, TUBING4
14PA-0050ADAPTOR2
15PF-0010TUBE, NYLON2
16PA-0185BANJO, BODY1
17UB-0007BALL, STEEL, 7 MM1
18UB-0005BALL, STEEL, 5 MM1
19FS-0368SCREW, DOG POINT, M8 X 161

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

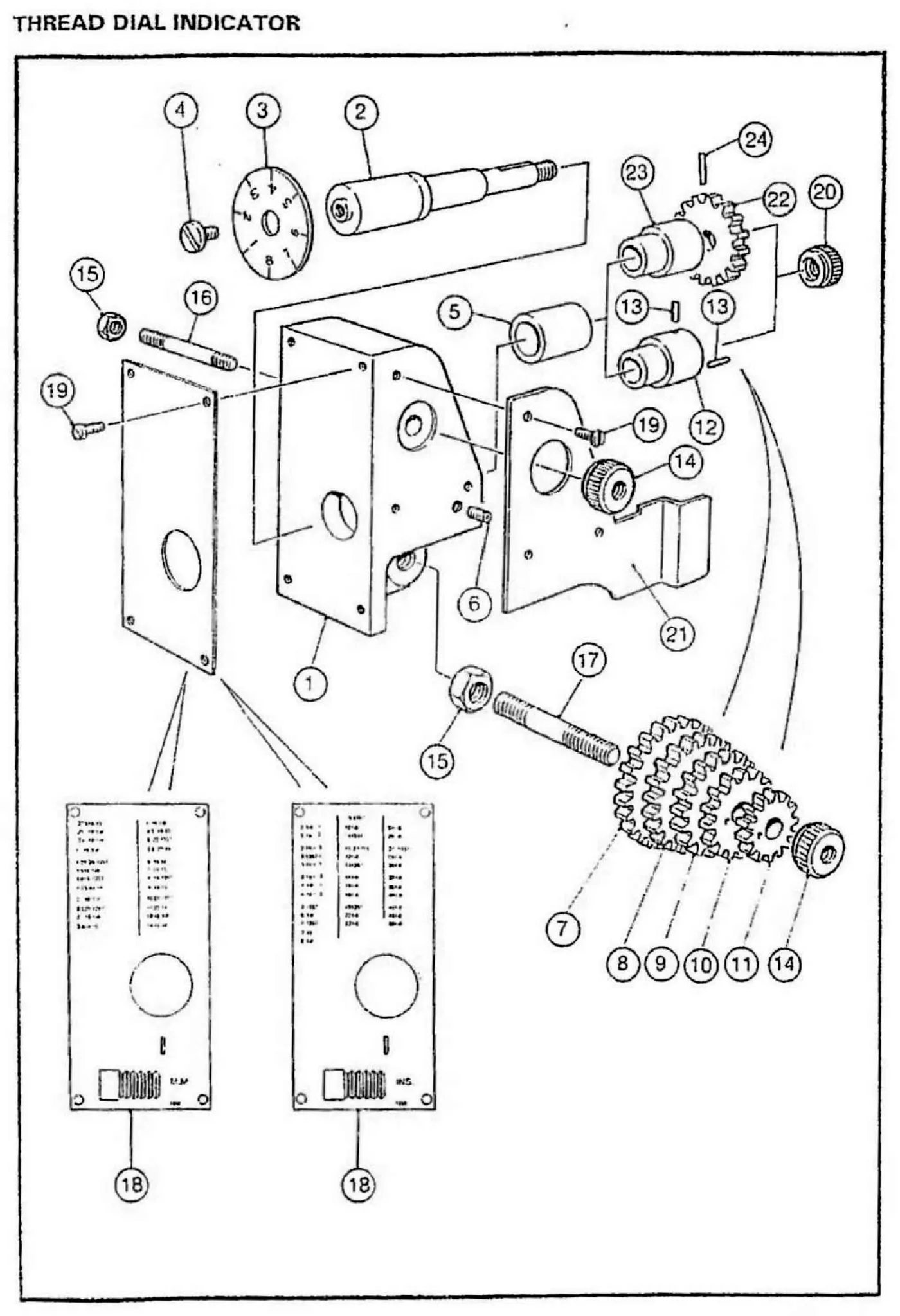

Harrison M300 thread dial indicator exploded parts diagram
Thread Dial Indicator exploded diagram - manual page 78.
ItemPart No.DescriptionQty.
METRICA143-0509THREAD DIAL INDICATOR ASSEMBLY (METRIC)1
1D704H077.1HOUSING1
2D704H078.1SPINDLE1
3D001H3036DIAL1
4FS-0704SCREW, M5 X 10 PAN HD1
5BF-0080BEARING, OILITE1
6FS-0344SCREW, M5 X 12 DOG POINT1
7D301H3026GEAR, 22 TEETH1
8D301H3025GEAR, 20 TEETH1
9D301H3024GEAR, 18 TEETH1
10D301H2016GEAR, 16 TEETH1
11D301H2015GEAR, 14 TEETH1
12D704H080.1SPACER, METRIC1
13FT-0647PIN, MILLS 3 MM X 102
14D112H2008NUT, KNURLED2
15FS-1040LOCKNUT, M82
16D250H0003STUD1
17D704H079.1STUD1
18NA-1358PLATE, METRIC1
19B123-6024SCREW, SELF-TAPPING, PAN HD, NO. 4 X 1/4 IN.2
20D704H083.1NUT, KNURLED1
21D704H095.1COVER1
ENGLISHA143-0510THREAD DIAL INDICATOR ASSEMBLY (ENGLISH)1
1D704H077.1HOUSING1
2D704H078.1SPINDLE1
3D001H3036DIAL1
4FS-0704SCREW, M5 X 10 PAN HD1
5BF-0080BEARING, OILITE1
6FS-0344SCREW, M5 X 12 DOG POINT1
14D112H2008NUT, KNURLED1
15FS-1040LOCKNUT, M81
16D250H0003STUD1
18NA-1359PLATE, IMPERIAL1
19B123-6024SCREW, SELF-TAPPING, NO. 4 X 1/4 IN.2
20D704H083.1NUT, KNURLED1
21D704H095.1COVER1
22D301H3023GEAR, 16 TEETH1
23D704H081.1SPACER, ENGLISH1
24FT-0648PIN, MILLS M3 X 121

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

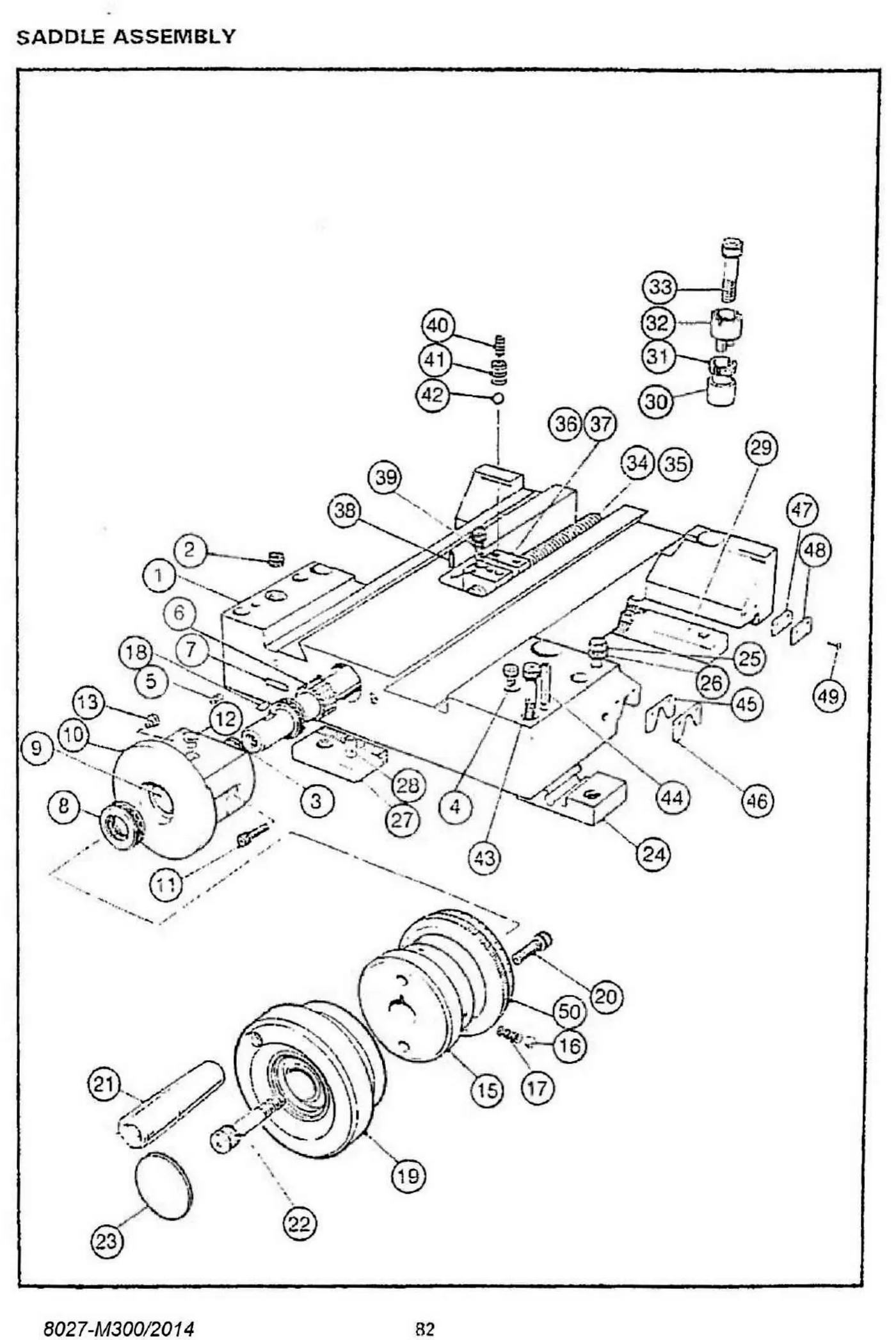

Harrison M300 saddle assembly exploded parts diagram
Harrison M300 Saddle Assembly exploded parts diagram.
ItemPart NumberDescriptionQty.
1D305H004.1SADDLE1
2PB-0110PLUG, 1/2 in. BSP SKT1
3FP-0165WASHER, M101
4FS-0704SCREW, M5 X 10 PAN HD, STAINLESS STEEL1
5FS-0498SCREW, M6 X 8 CUP POINT5
6D301H2014GEAR, DRIVE, 13 TEETH1
7FT-0250PIN, M5 X 28 SPIROL1
8BG-0040BEARING2
9BE-0100BEARING, 25 X 20 OILITE2
10D305H005.1HOUSING, BEARING1
11FS-0136SCREW, M6 X 20 CAP HD SKT2
12OC-0010NIPPLE, OIL 6mm DRIVE1
13ED-0265GROMMET1
14NOT USED
15S2505C005BOSS, HANDWHEEL1
16UB-0006BALL, 6mm STEEL3
17FR-0005SPRING, SG3443
18KA-0170KEY, WOODRUFF1
19S2505C001HANDWHEEL, CROSS SLIDE1
20FS-0140SCREW, M6 X 30 CAP HD SKT2
21HB-0030HANDLE, REVOLVING1
22FS-0770SCREW, M8 X 30 CAP HD SKT1
23ED-1425CAP, END1
24D800H2003PLATE, CLAMP1
25FS-0596BOLT, M10 X 70 HEX HD, HIGH TENSILE1
26FP-0060WASHER, M101
27D800H2005PLATE, FRONT KEEP1
28FT-0340PIN, M6 X 20 SPIROL1
29D905H012.1PLATE, REAR KEEP1
30D101H1038SLEEVE, ADJUSTING4
31D121H1007SCREW, ADJUSTING4
32D111H1005ADJUSTER, CLAMP4
33FS-0178SCREW, M8 X 60 CAP HD SKT4
34D305H015.1SHAFT, SCREW, SADDLE METRIC1
35D305H016.1SHAFT, SCREW, SADDLE ENGLISH1
36D831H2004NUT, SADDLE METRIC1
37D831H2005NUT, SADDLE ENGLISH1
38FTJ-0350PIN, M6 X 26 SPIROL1
39FS-0116SCREW, M5 X 20 CAP HD SKT4
40FS-0862SCREW1
41FR-0165DISC, SPRING3
42UB-0008BALL, STEEL1
43FS-0178SCREW, M8 X 60 CAP HD SKT4
44FT-0460PIN, SPIROL 8 X 502
45GB-0010WIPER, VEE2
46GC-0010BACKPLATE, WIPER2
47GB-0030WIPER, SEAL2
48GC-0030BACKPLATE2
49FS-0278SCREW, M4 X 12 BUTTON HD SKT8
50SA-0060DIAL, METRIC1
50SA-0070DIAL, ENGLISH1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

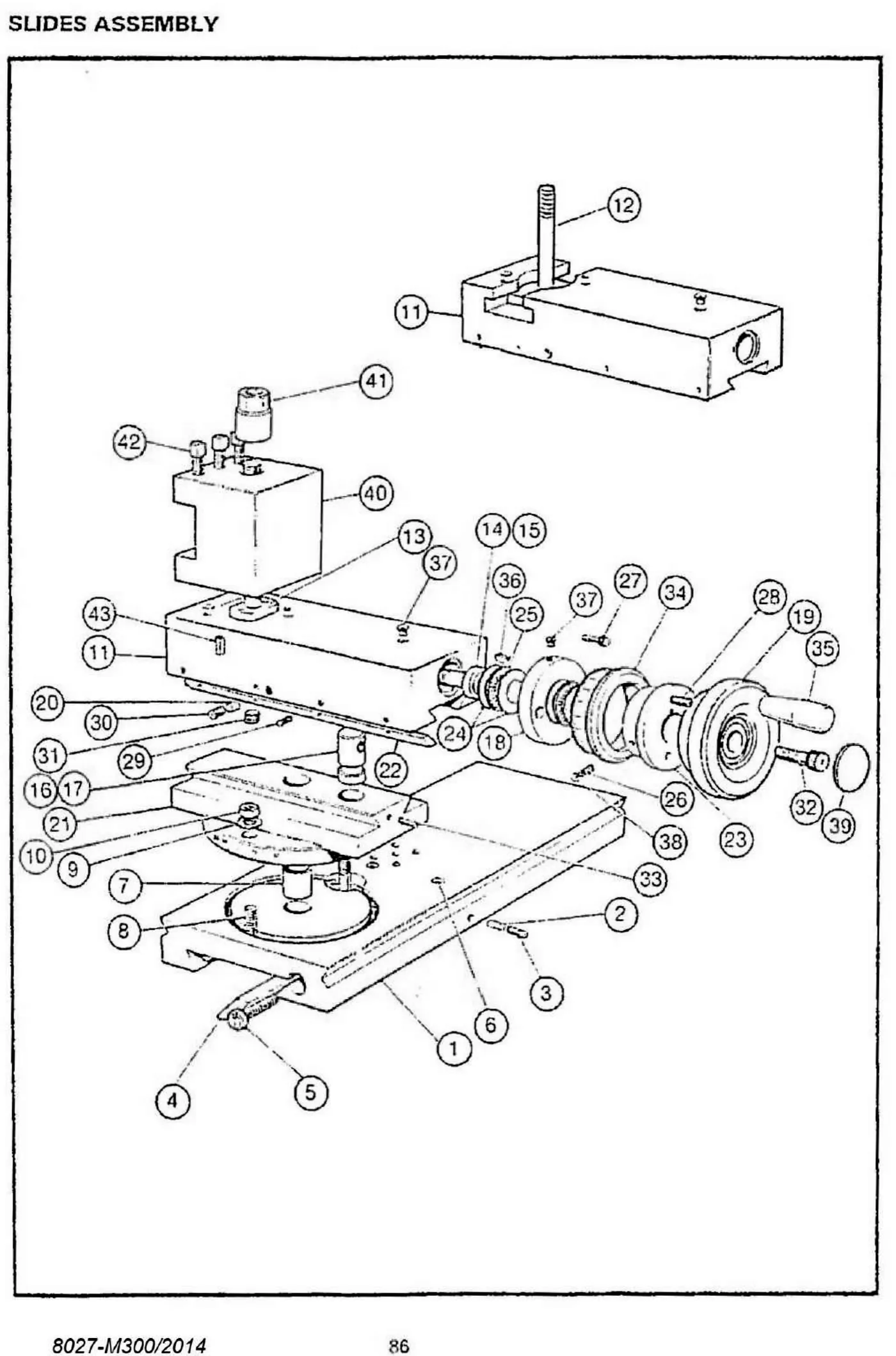

Harrison M300 slides assembly exploded parts diagram
Harrison M300 Slides Assembly exploded parts diagram.
ItemPart NumberDescriptionQty.
1D678H7001CROSS SLIDE1
2D100H0010PIN LOCK1
3FS-0516SCREW, M8 X 12 CUP POINT1
4D740H1002STRIP, CROSS SLIDE1
5FS-0868SCREW, ADJUSTING2
6OC-0010NIPPLE, OIL, 6mm DRIVE3
7D110H1011PIN, SWIVEL1
8D512H1001BOLT, TEE2
9FP-0050WASHER, M82
10FS-0920NUT, M82
11D831H6002TOP SLIDE, SOLID1
11D831H6001TOP SLIDE, TEE SLOTTED1
12A805H0101TEE PIECE & STUD ASSY1
13D001H2091RING, LOCATING1
14D282H1008SCREW, TOP SLIDE (ENGLISH)1
15D282H1007SCREW, TOP SLIDE (METRIC)1
16D517H1002NUT, TOP SLIDE (ENGLISH)1
17D517H1001NUT, TOP SLIDE (METRIC)1
18D001H5013HOUSING, BEARING1
19S2505C002BOSS, HANDLE1
20D100H0009PAD, CLAMP1
21D664H7001SLIDE, SWIVEL1
22D710H1001STRIP1
23S2505C006BAR, FINGER1
24BC-0030WASHER, THRUST4
25BC-0040RACE, THRUST2
26FR-0005SPRING1
27FS-0114SCREW, M5 X 16 CAP HD2
28FS-0116SCREW, M5 X 20 CAP HD2
29FS-0504SCREW, M6 X 16 CUP POINT1
30FS-0514SCREW, M8 X 8 CUP POINT1
31FS-0526SCREW, M12 X 12 CUP POINT1
32FS-0764SCREW, M6 X 25 CAP HD NYLOC1
33FS-0786M6 X 16 DOG POINT NYLOC SCREW4
34SA-0070DIAL - IMPERIAL1
34SA-0080DIAL - METRIC1
35HA-0140KNOB1
36KA-0170KEY, WOODRUFF1
37OC-0010NIPPLE, OIL, 6mm DRIVE2
38UB-0006BALL, M6 STEEL1
39ED-1425END CAP1
41D112H2010TOOLPOST NUT1
42FS-0672SCREW, CLAMP, M8 X 403
43FT-0130PIN, SPIROL, M4 X 162

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

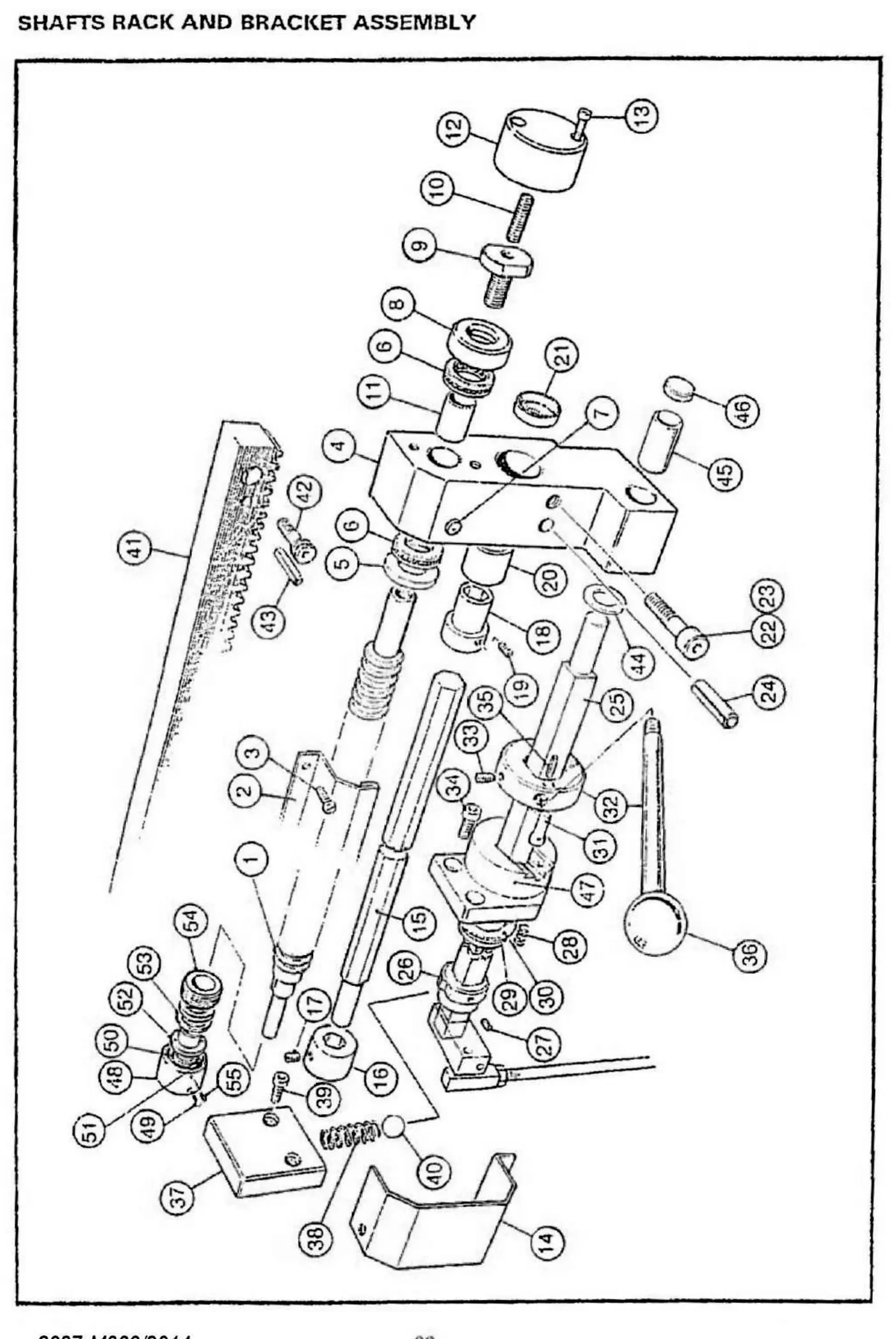

Harrison M300 shaft, rack and bracket assembly exploded parts diagram
Harrison M300 Shaft, Rack and Bracket Assembly exploded parts diagram.
ItemPart NumberDescriptionQty.
1D282H2020PLEADSCREW, METRIC 25 in.1
1D282H2021PLEADSCREW, METRIC 40 in.1
1D282H2022PLEADSCREW, IMPERIAL 25 in.1
1D282H2023PLEADSCREW, IMPERIAL 40 in.1
2D306H032.3COVER 25 in.1
2D306H033.3COVER 40 in.1
3FS-0704M5 X 10 PAN HEAD SCREW2
4D306H029.1END BRACKET1
5D001H2072SPACER1
6BG-0040BEARING2
7OC-0010NIPPLE OIL 6mm DRIVE1
8D001H2087COVER1
9D122H2001LOCKSCREW1
10FS-0508M6 X 25 CUP POINT SCREW1
11BF-0090BEARING1
12D306H037.1COVER1
13FS-0089M3 X 25 CAP HEAD SCREW2
14D306H034.1COVER1
15D210H1036FEEDSHAFT 25 in.1
15D210H1037FEEDSHAFT 40 in.1
16D306H036.1COUPLING1
17FS-0558M5 X 8 CUP POINT SCREW1
18D001H2104COLLAR1
19FS-0496M6 X 6 CUP POINT SCREW1
20BF-0145BEARING1
21D000H2005PLUG1
22FS-0170M8 X 40 CAP SCREW1
23FS-0176M8 X 55 CAP SCREW1
24FT-0850PIN, SPIROL M8 X 652
25D551H1006THIRD SHAFT 25 in.1
26D551H1007THIRD SHAFT 40 in.1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

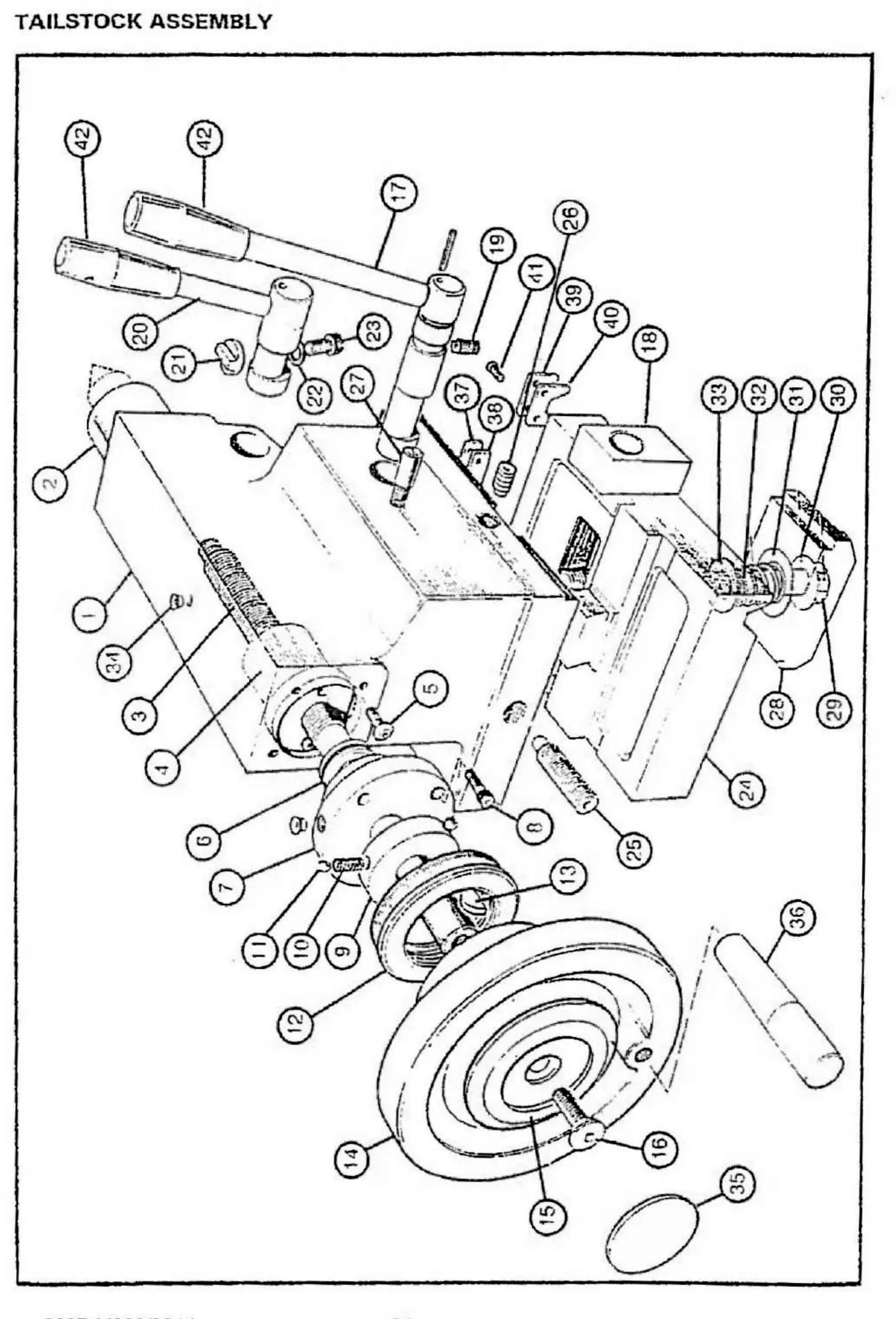

Harrison M300 tailstock assembly exploded parts diagram
Harrison M300 Tailstock Assembly exploded parts diagram.
ItemPart NumberDescriptionQty.
MB-ZB-0010TAILSTOCK ASSEMBLY1
1D307H007.1/VBODY1
2D207H3005QUILL1
3D282H1001SCREW - METRIC1
3D282H1002SCREW - IMPERIAL1
4D118H3003NUT - METRIC1
4D118H3004NUT - IMPERIAL1
5FS-0290SCREW M5 X 26 BUTTON HD SKT2
6BG-0040BEARING1
7D111H5007BUSH - REAR1
8FS-0116SCREW, M5 X 20 CAP HD SKT4
9D001H3035RING, DETENT1
10FR-0005SPRING3
11UB-0006BALL, STEEL3
12SA-0070DIAL, ENGLISH1
12SA-0080DIAL, METRIC1
13KA-0180KEY, WOODRUFF1
14S2504C007HANDWHEEL1
15S2504C008SPACER1
16FS-0784SCREW, M8 X 20 C/SUNK NYLOC1
17A801H0103CLAMP, BED ASSY1
18D800H2002BLOCK1
19FS-0796SCREW, M8 X 20 FULL DOG POINT NYLOC1
20A801H0104CLAMP, QUILL ASSY1
21D000H2004KEY, QUILL1
22FP-0040WASHER, BRIGHT, M61
23FS-0130SCREW, M6 X 10 CAP HD SKT1
24D820H7002BASE1
25FS-0892SCREW, M12 X 50 SKT SET - SPHERICAL POINT1
26FS-0377SCREW, M10 X 50 DOG POINT2
27S2507C006PIN, STOP1
28D820H5001PLATE, CLAMP1
29FS-0756BOLT, M16 X 100 HEX HD NYLOC1
30D001H2099WASHER, CLAMPING1
31D001H3037WASHER, RETAINING1
32FR-0011SPRING1
33FP-0090WASHER, M16 BRIGHT1
34OC-0010NIPPLE, OIL 6mm DRIVE-IN2
35ED-1425CAP, PLASTIC1
36HB-0030HANDLE, REVOLVING1
37GC-0030WIPER COVER (FLAT)1
38GB-0030WIPER, FLAT1
39GC-0020WIPER COVER (VEE)1
40GB-0020WIPER, VEE1
41FS-0278SCREW, M4 X 12 BUTTON HD SKT4
42HA-0180HANDLE2

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

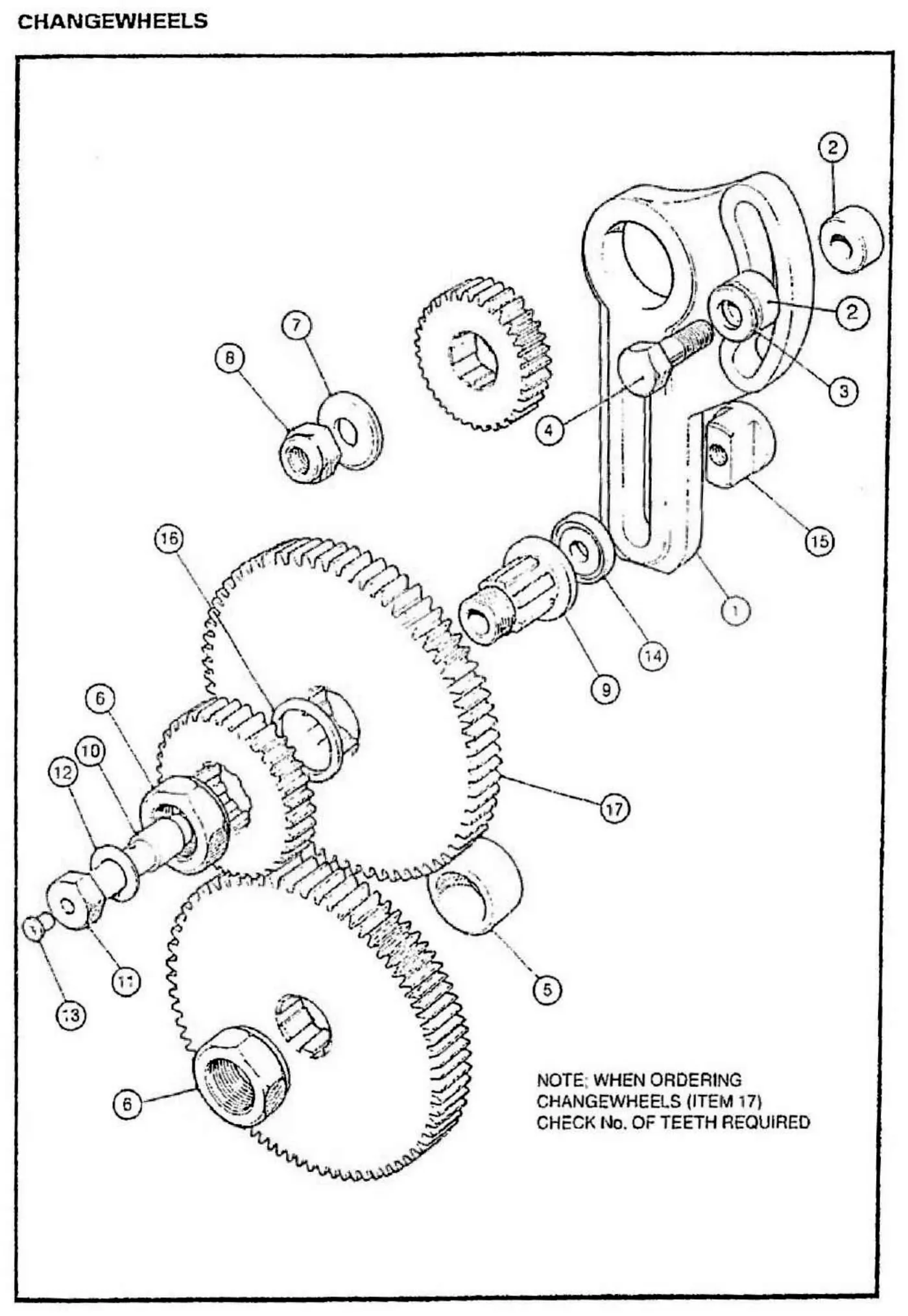

Harrison M300 changewheels exploded parts diagram
Harrison M300 Changewheels exploded parts diagram.
ItemPart NumberDescriptionQty.
1D661H6001FRAME, SWING1
2D101H2095SPACER, SWING FRAME2
3FP-0165WASHER, M101
4FS-0596BOLT, M10 X 70 HEX HD, HIGH TENSILE1
5D101H2096SPACER1
6FS-0954NUT, CHANGEWHEEL2
7D001H2077WASHER1
8FS-0938NUT, 10mm1
9D121H2007BUSH, CHANGEWHEEL1
10BF-0070BEARING, GLACIER2
11D507H1001STUD, CHANGEWHEEL1
12D001H1008SPACER1
13OC-0010NIPPLE, OIL, 6mm DRIVE1
14D001H2076SPACER1
15D112H2007NUT, CHANGEWHEEL1
16D001H2075SPACER1
17M308CHANGEWHEELS, COMMON TO METRIC & ENGLISH1
D301H5015CHANGEWHEEL, 44 TEETH1
D301H6045CHANGEWHEEL, 56 TEETH1
UA-0030CHANGEWHEEL, 88 TEETH1
M308/MCHANGEWHEELS, METRIC MACHINES ONLY1
UA-0010CHANGEWHEEL, 96 TEETH1
NA-1440M300 AUXILIARY THREAD PLATE (BLACK)1
NA-1429M300 THREAD AND FEED PLATE (BLACK)1
B123-6024SCREW, PAN HD4
M308/ECHANGEWHEEL, ENGLISH MACHINES ONLY1
D301H5074CHANGEWHEEL, 40 TEETH1
UA-0040CHANGEWHEEL, 84 TEETH1
UA-0020CHANGEWHEEL, 95 TEETH1
M308/E-STDCHANGEWHEELS, STANDARD1
NA-1437M300 AUXILIARY THREAD PLATE (BLACK)1
NA-1441M300 THREAD AND FEED PLATE (BLACK)1
B123-6024SCREW, PAN HEAD4
M308/E-USACHANGEWHEELS, USA1
NA-1438M300 AUXILIARY FEED PLATE (BLACK)1
NA-1437M300 AUXILIARY THREAD PLATE (BLACK)1
NA-11541154 THREAD AND FEED PLATE1
FS-0854SCREW, PAN HEAD4

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents

The numbered callouts in the exploded diagram correspond to the item numbers in the parts table below.

Harrison M300 interlocked chuck guard exploded parts diagram
Harrison M300 Interlocked Chuck Guard exploded parts diagram.
ItemPart NumberDescriptionQty.
30D311H015.1CANOPY-CHUCK GUARD1
31HA-0110M5 HANDLE1
32FS-0286M5 X 12 BUTTON HEAD CAP SCREW4
33FP-00305MM BRIGHT STEEL WASHERS4
34D017H9-005MOUNTING PLATE1
35FS-0302M8 X 12 BUTTON HEAD CAP SCREW3
36FP-0050M8 BRIGHT WASHER FORM A3
40BD-00508MM DIA. X 12 CYLINDRICAL ROLLERS6
41FR-0230SPRING SG419 (FLEXO M165503)4
42D011H7-016RETAINING PLATE1
43FS-0116M5 X 20 SOCKET HEAD CAP SCREW3
45D311H002.1/VSTOP BUTTON1
46FS-0134M6 X 16 SOCKET HEAD CAP SCREW1
48QF-0350CHUCK GUARD HARNESS GA10051
49FS-0098M4 X 20 SOCKET HEAD CAP SCREW2
50FS-0963M4 DOMED NUT2
51FP-0170M4 STANDARD BRIGHT WASHER2
53S2511C002SWITCH CASING1

Parts information transcribed from the Harrison M300 operations and spare parts manual. Confirm the machine serial number before ordering.

Back to Table of Contents
